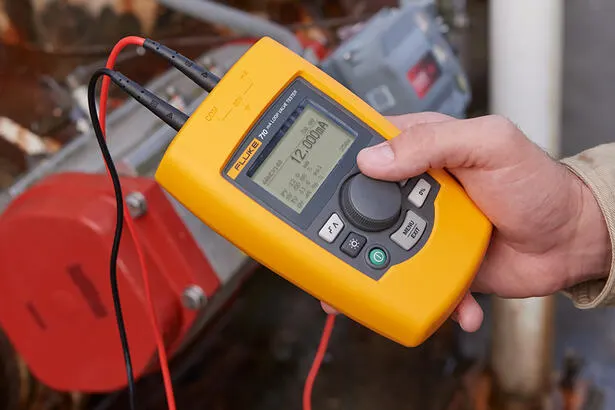

Fluke 710

כייל 4-20mA עם תקשורת HART ייעודי לבדיקות שסתומים.

    מתעניינים במוצר זה ורוצים לקבל יותר פרטים?

    תיאור מוצר

    Fluke 710 Offers

    Features

    • Key valve testing functions – valve signature test, speed test, step test, manual test, bump/partial stroke test
    • Key mA loop calibrator functions – mA source, mA simulate, mA read, mA read/loop power, and volts read
    • ValveTrack™ software – enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
    • Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
    • Generic HART communication
    • Best-in-class mA accuracy at 0.01% measurement or source value
    • Compact rugged design
    • Intuitive user interface with Quick-Set knob for fast setup, easy to use
    • 24 V DC loop power with mA measure mode (-25 to 125%)
    • Resolution of 1 μA on mA ranges and 1 mV on voltages ranges
    • Built in selectable 250 Ω resistor for HART communications
    • Simple two wire connection for all measurements
    • Auto shutdown to conserve battery life
    • Variable step and ramp time in seconds
    • Offers a built-in HART modem to communicate the following HART commands:
      • Read sensor PV information
      • Read PV output information
      • Read and write PV unit type, tag ID name, descriptor, and message
      • Read and write PV ranges (upper and lower)
      • Enter/exit fixed current mode
      • Set zero offset
      • Trim DAC zero (mA output 4 mA)
      • Trim DAC gain (mA output 20 mA)

    הורדות

    710-datasheet הורדה
